Connect a Blackmagic ATEM to VRA as your video switcher: check the supported firmware, enter the switcher’s IP address and test the connection.
Not sure yet whether Blackmagic ATEM fits your setup? See Blackmagic ATEM on visualradioassist.live.To manage your Video Switcher Connections make sure your Core App is runningGo to Settings → Studio → Switchers in VRA Cloud, click Add switcher and pick Blackmagic ATEM. Fill in the switcher’s IP address as Host. Set M/E if you don’t use the first M/E.

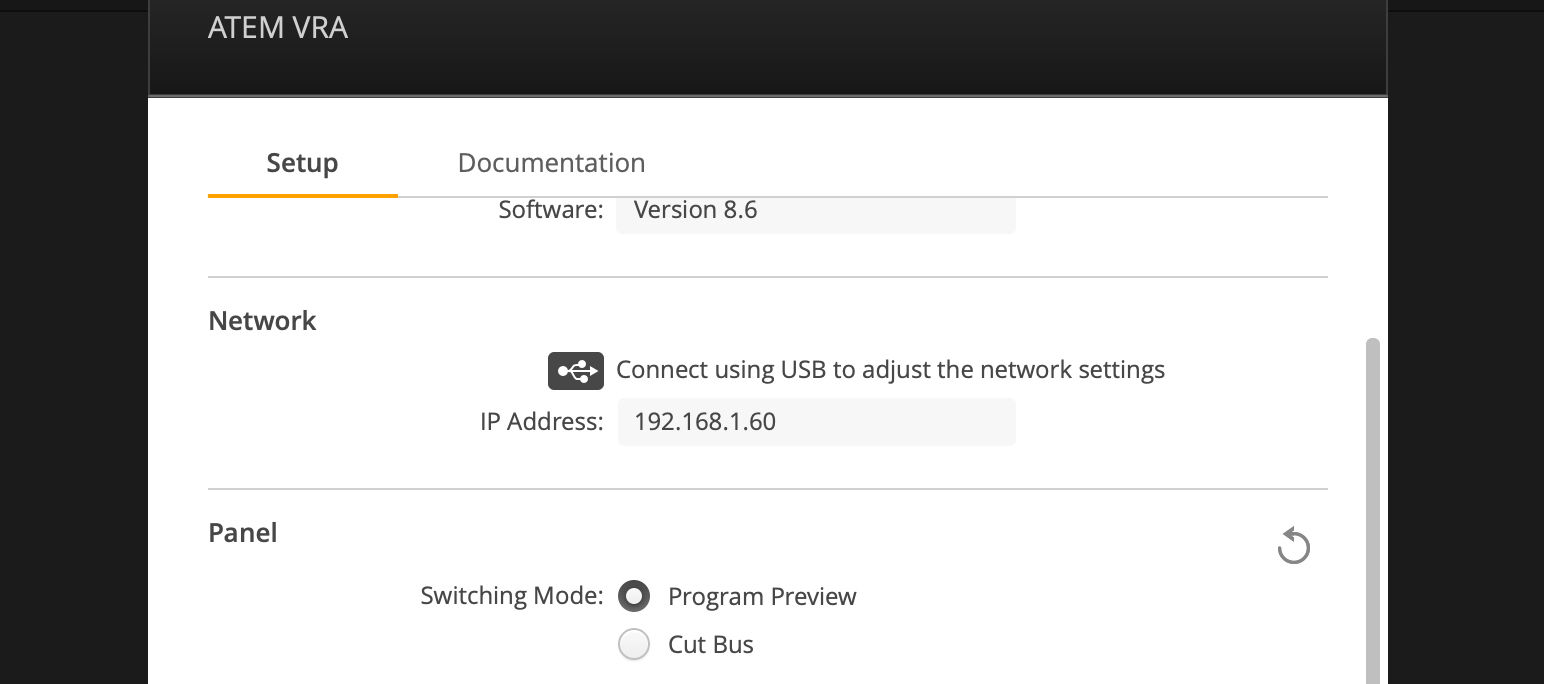

The VRA ATEM Switcher connection currently supports all ATEM Switchers with the following Firmware ranges: v7.2 to v7.5.2 and v8.0 to v8.6. Verify your ATEM firmware/”software” version in the ATEM Setup software.
Provide the host / ip of your ATEM Video Switcher. Open your ATEM Video Setup software to validate your ATEM’ Network settings.
Make sure that the VRA Core is able to access the ip address of the ATEM switcher on the network.

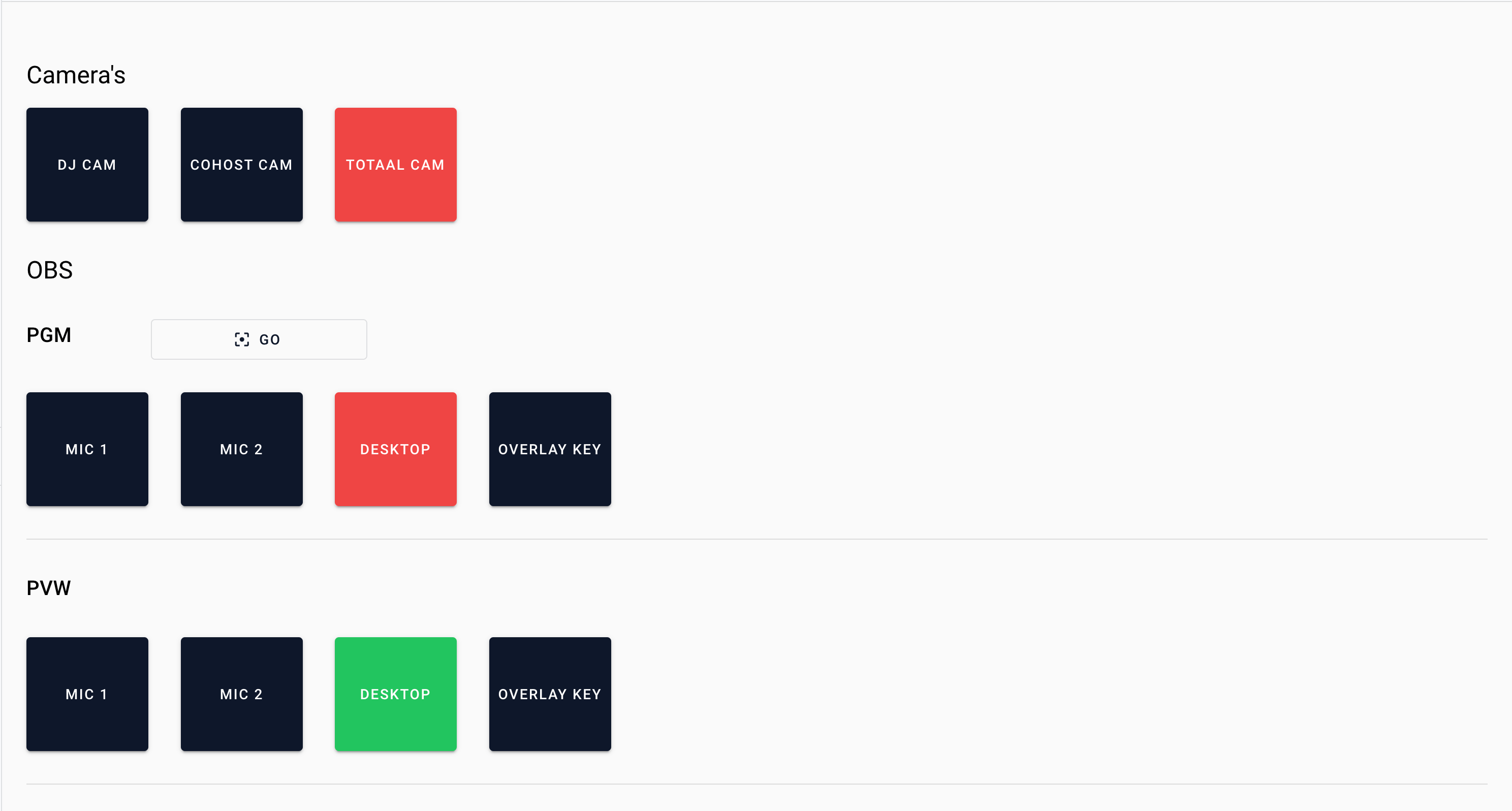

A new switcher is enabled when you add it. Go to the Live Switcher to test and validate your connection.
