Bitfocus Companion turns a Stream Deck, or any other Companion surface, into a control panel for the Core. This page uses Companion’s Generic HTTP module and the Core API v2.
For most studios the VRA Core module for Companion is the easier choice: actions, tally feedback, variables and presets made from your studio, with no URLs to type. Use the Generic HTTP recipe below for a custom setup.
Companion’s Generic TCP/UDP and Generic OSC modules work too, once the Core’s TCP line protocol or OSC is switched on: send a route such as studio/onair as a TCP line, or /vra/studio/onair as an OSC message.

​
What the Generic HTTP module can do

  • Send GET, POST and other requests, with headers given as JSON. That covers every Core API route and the device token header.
  • Store a response in a custom variable.
  • It has no feedbacks that poll a URL, and it cannot pick a field out of a JSON response.
  • A non-2xx answer marks the connection with a warning.
So: use the Core’s plain-text routes, which answer one bare value such as onair, and poll them with a Companion trigger.

​
Create a device token

Open Studio settings → Core API in VRA Cloud, click Add device and name it, for example Companion studio. Copy the Companion header:
The token is shown only once. See Authentication and LAN access.
Does Companion run on the Core machine itself? Then use http://localhost:3002 and leave the header out. Calls from the Core machine need no token.

​
Add the connection

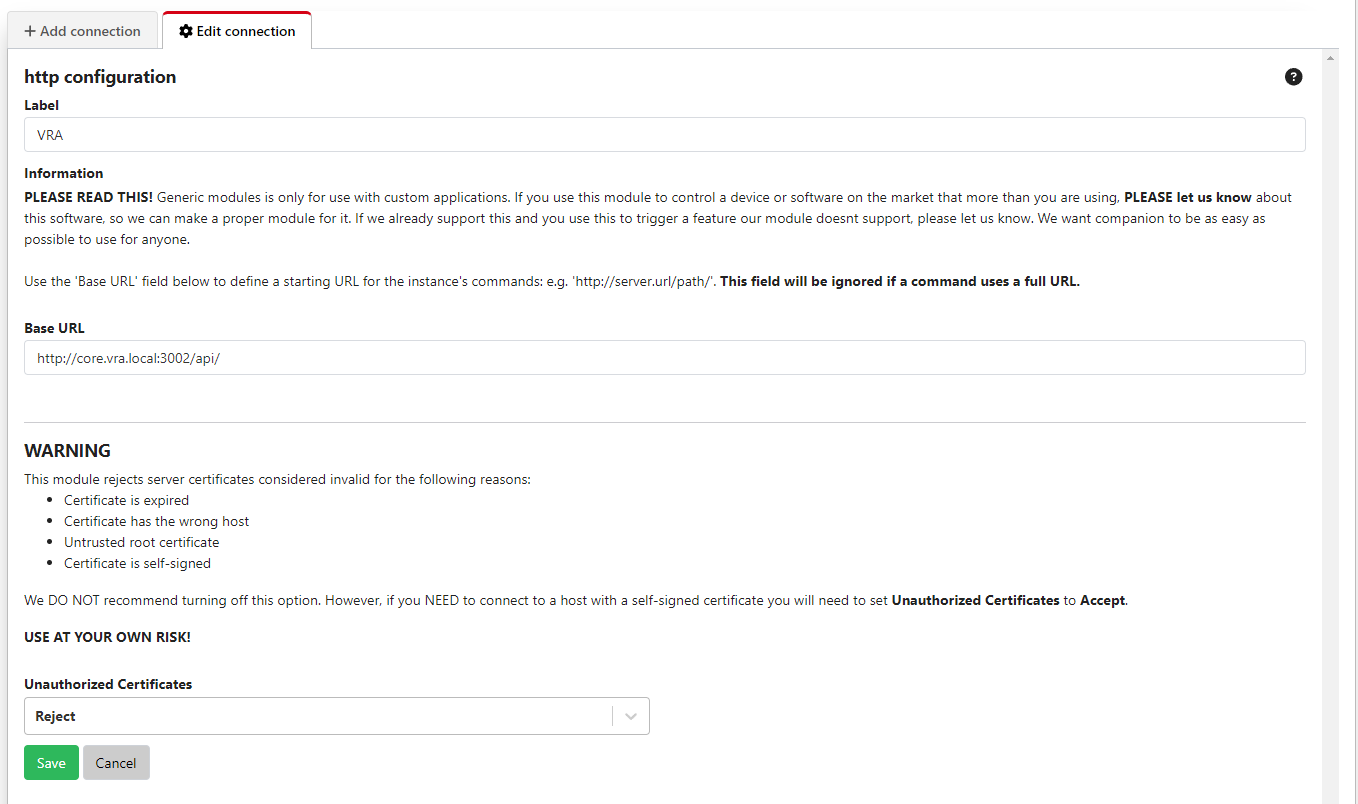

Add a Generic HTTP connection and set its Base URL to the plain-text routes of your Core:
Every action then only needs the rest of the path, like studio/onair. To avoid pasting the header into every action, create a custom variable, for example vra_auth, with the header JSON as its value. Reference that variable in the header field of each action.

​
Buttons that act

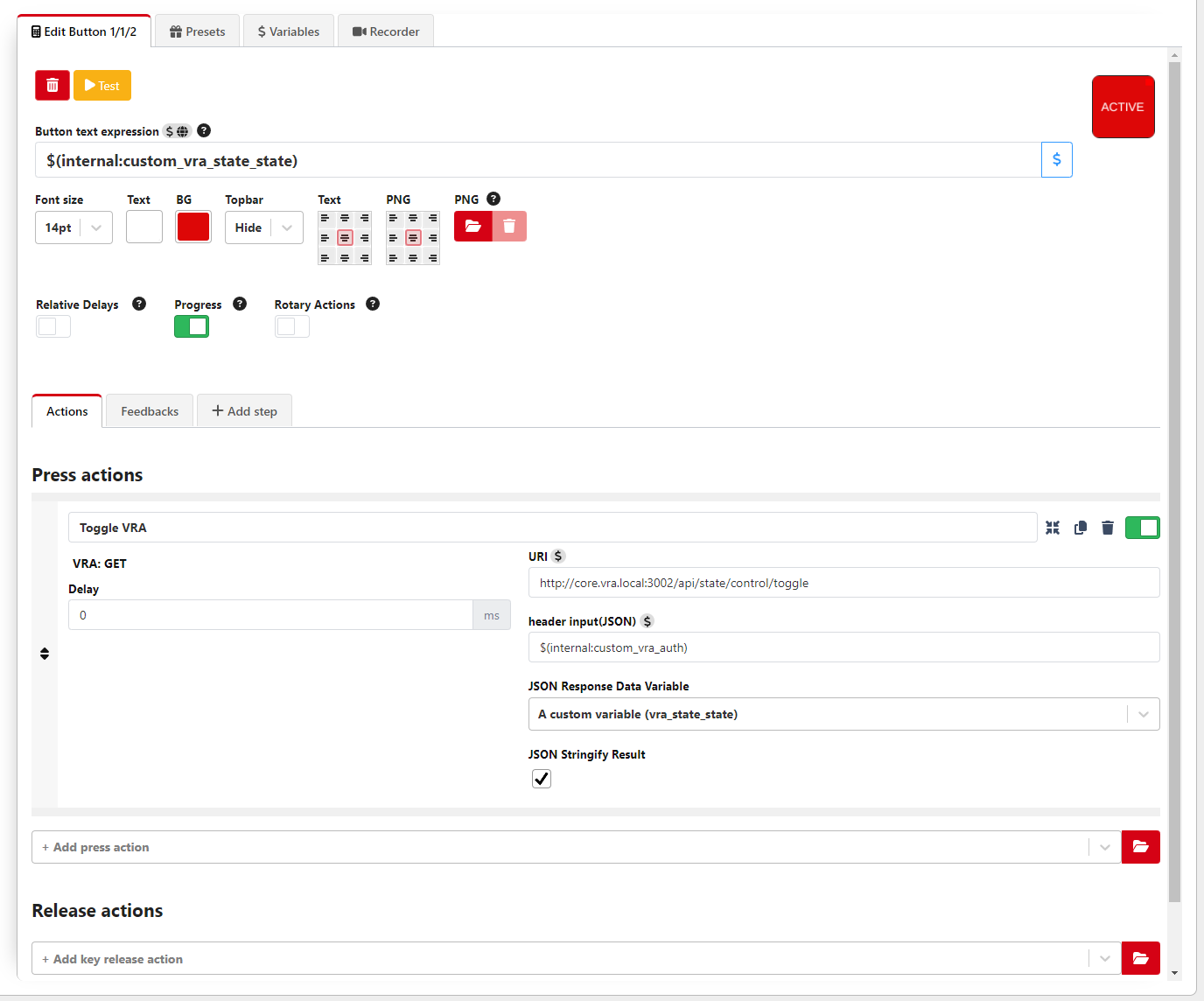

Add a GET action from the connection to a button. Set the URI to the route and the header to the Companion header. break-lamp stands for one of your signal identifiers. Macros are addressed by id or name. 2 is a camera number (a camera name or id works too) and Guest close one of its angles. live stands for a BOOLEAN user input variable of the station; variable writes go through VRA Cloud and need the Core’s internet connection. See Routes for all routes. The control routes are idempotent: Studio on air on a studio that is already on air answers OK and changes nothing. A toggle is fine on a button that shows the state. On a button without state, prefer explicit routes like /onair and /offair.

​
Buttons that show state

Generic HTTP has no polled feedback, so keep the state in custom variables and refresh them with a trigger.
1

Create a custom variable

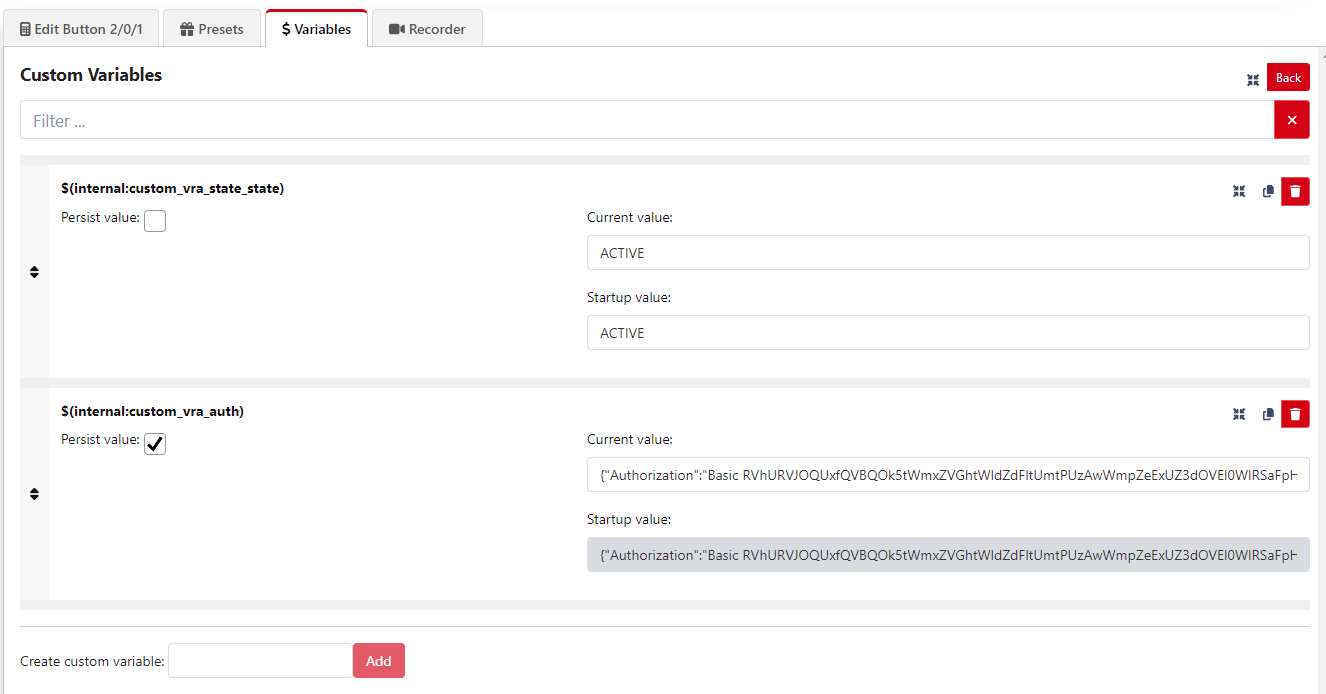

Create a custom variable per value you want to show, for example vra_studio.
2

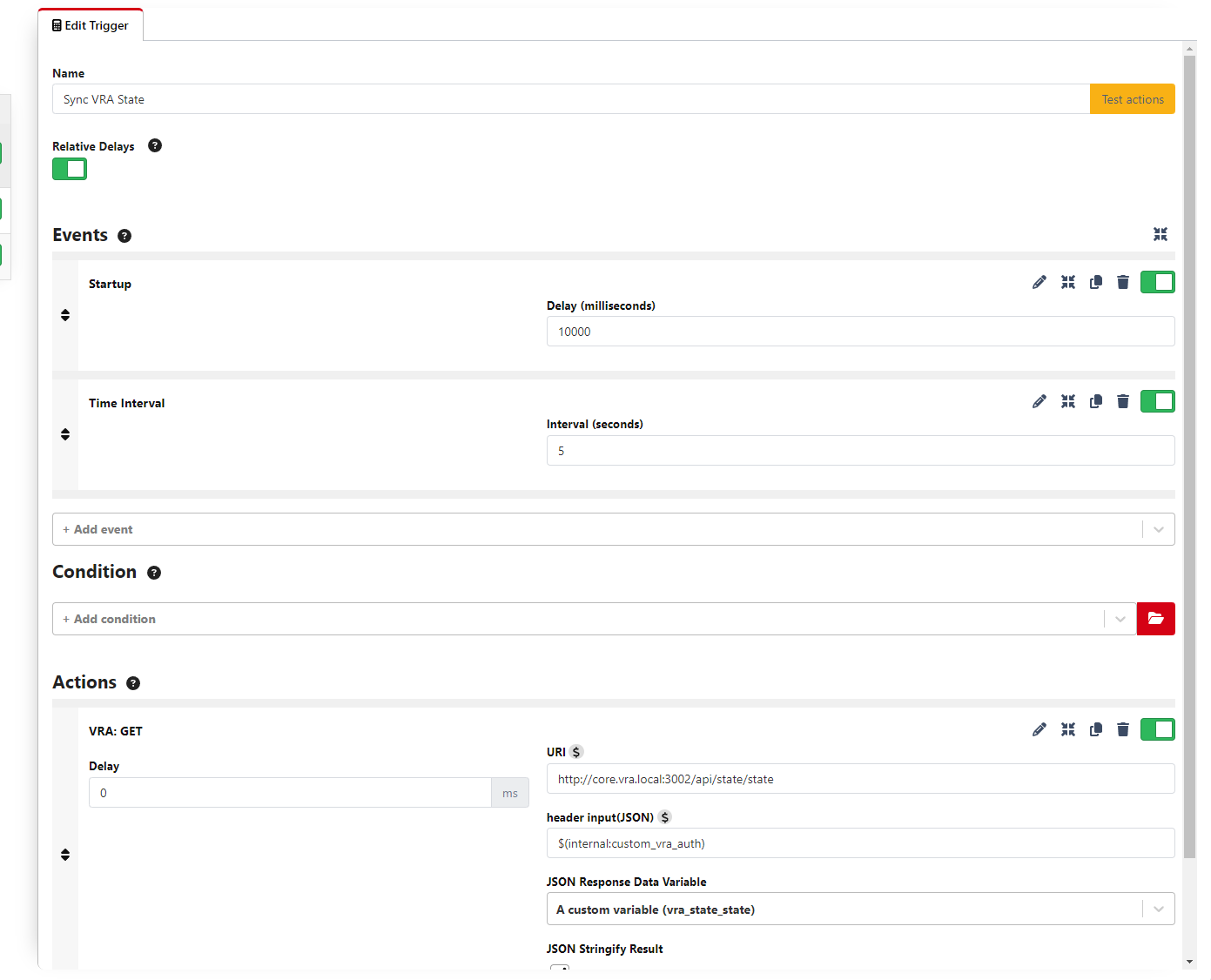

Create a polling trigger

Add a trigger with a Time Interval event, every 1 to 5 seconds, and optionally a Startup event. Give it a GET action from the connection with the URI studio/status and the Companion header. Store the response in vra_studio through JSON Response Data Variable. Leave JSON Stringify Result off.
3

Show the value

Put the variable in the button text. It now reads onair, recording or offair.
4

Color the button

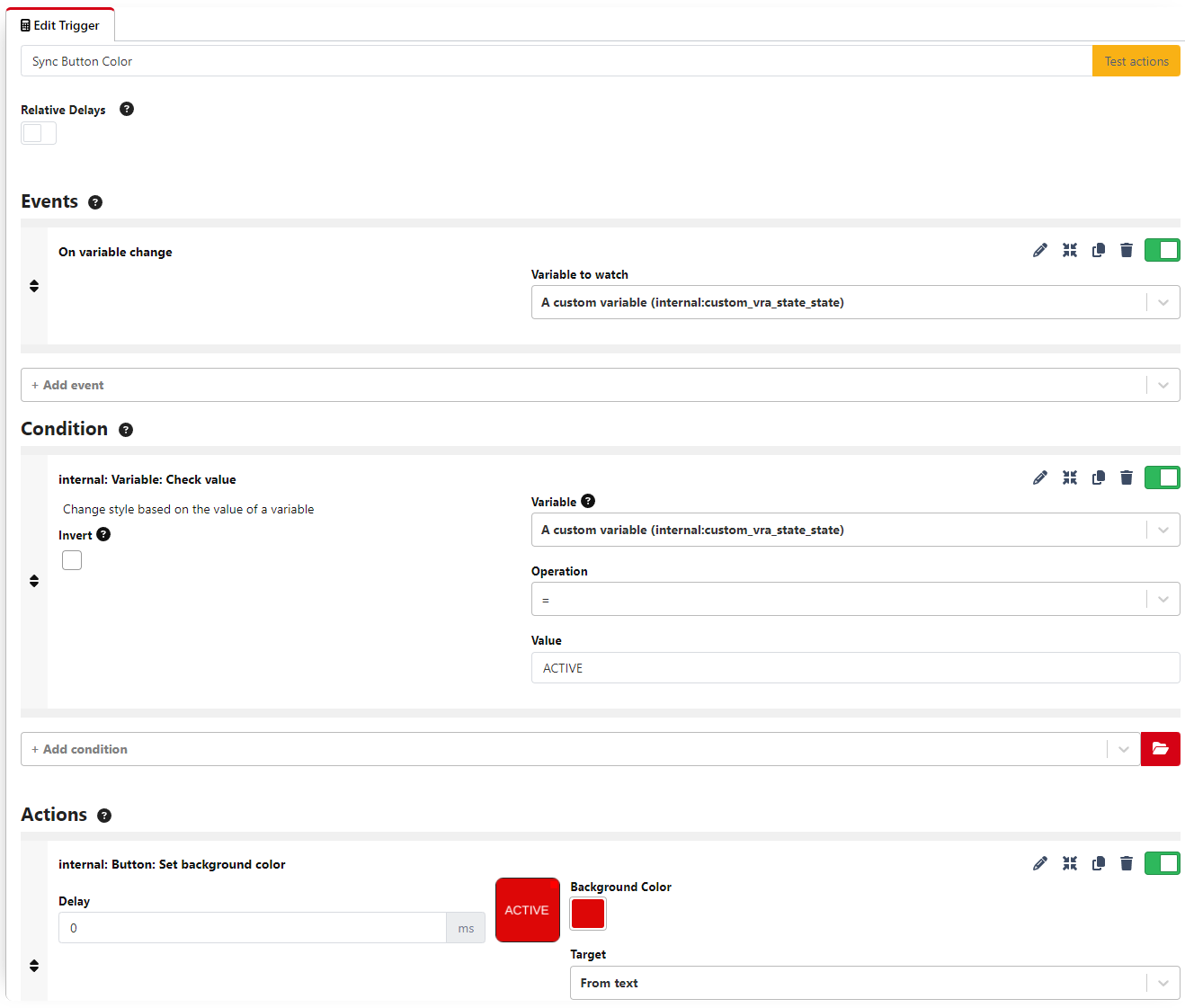

Use Companion’s internal feedback that checks a variable value. For example: when vra_studio equals onair, set a red background.
Useful routes to poll: For a tally on a camera button, poll cameras/2/on-air into a variable such as vra_cam2 and set a red background when vra_cam2 equals 1. After the action of a button, add the same GET that writes the same variable, so the button updates at once instead of at the next poll.

​
When something does not work

A warning on the connection means the Core answered with an error. Open the route in a browser without /plain in the path: the JSON answer names the error, for example "error":"unauthorized". On the Core machine, http://localhost:3002/api/v2/requests lists the last calls with their status and error code. See Errors and status codes.

​
Existing setups with the legacy routes

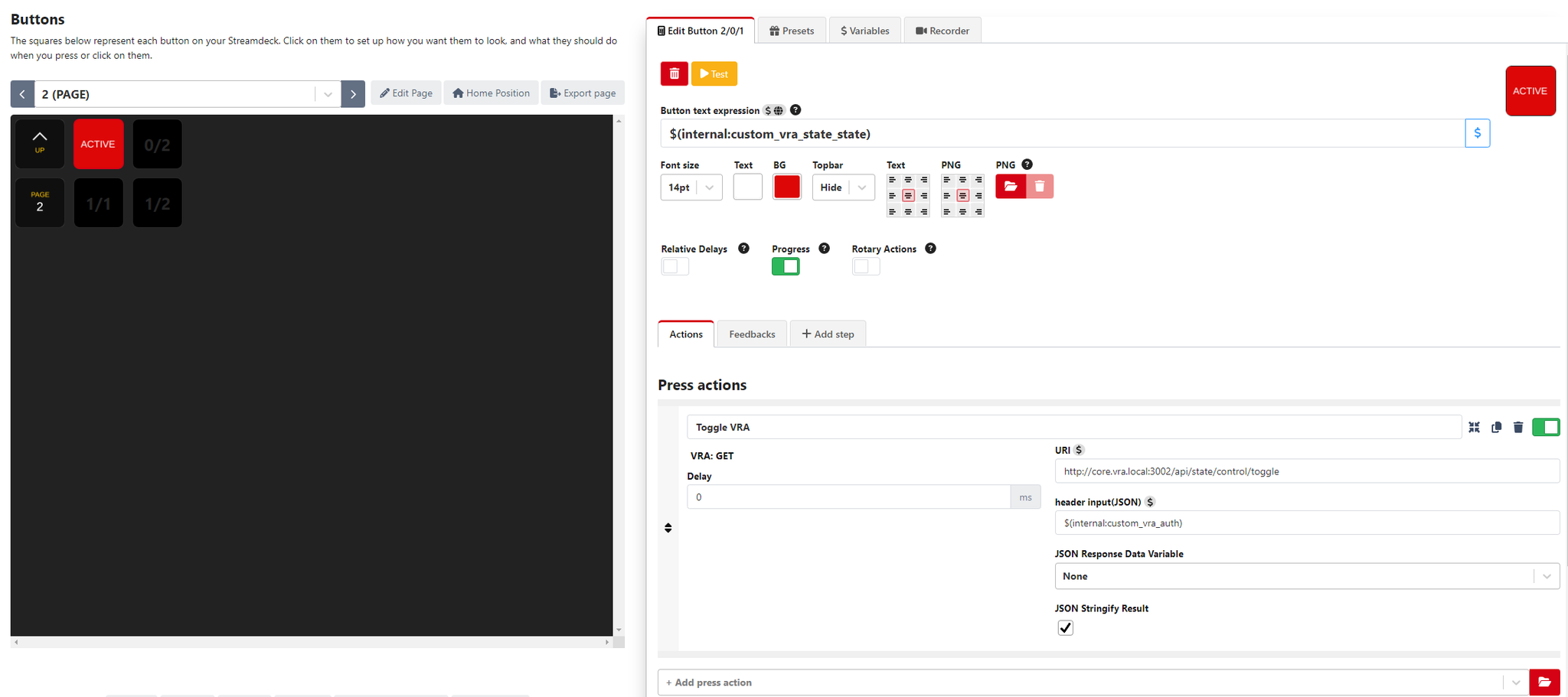

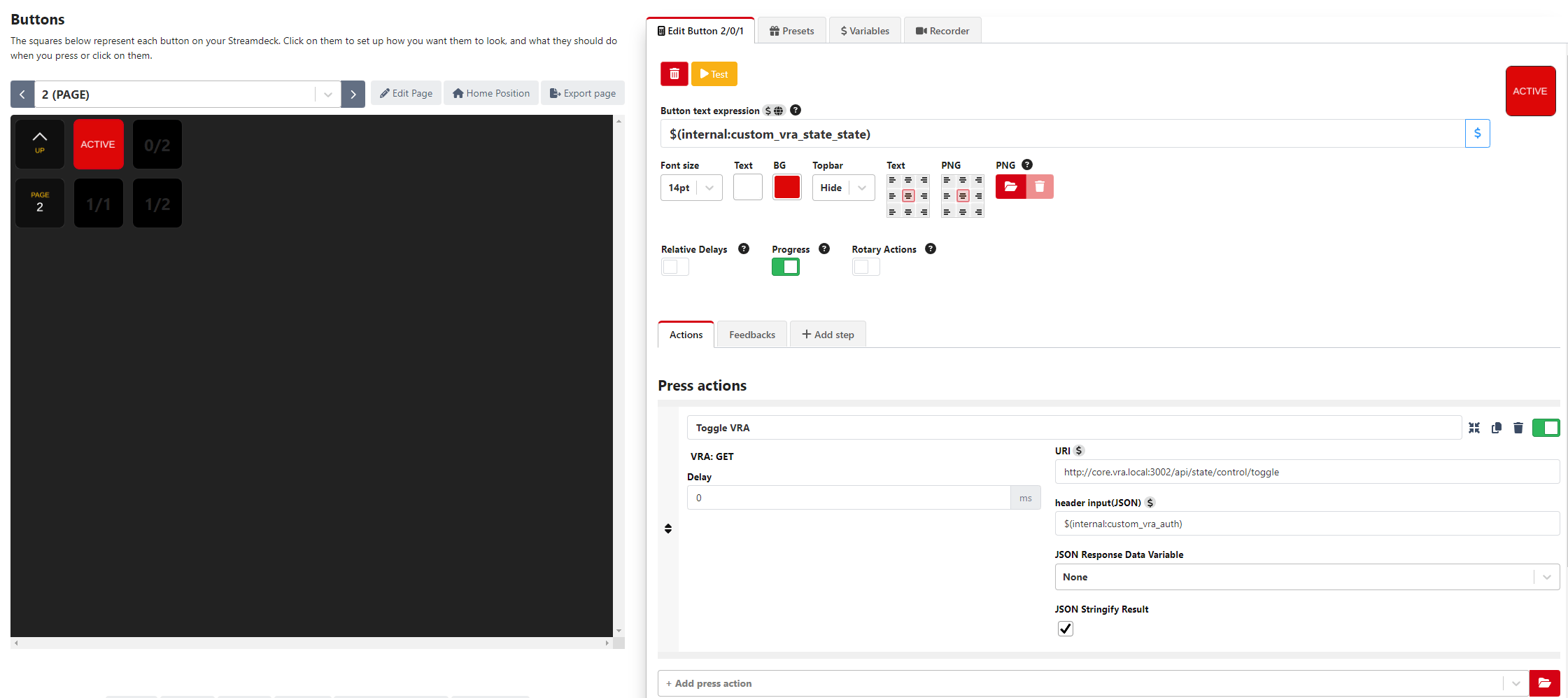

Older Companion pages call Core v1 routes, such as /api/state/state, with the EXTERNAL_APP Basic header in a variable. The Core keeps answering those, see Legacy routes. Move them to a device token and the /api/v2/plain routes when you can.
